Flow Operations

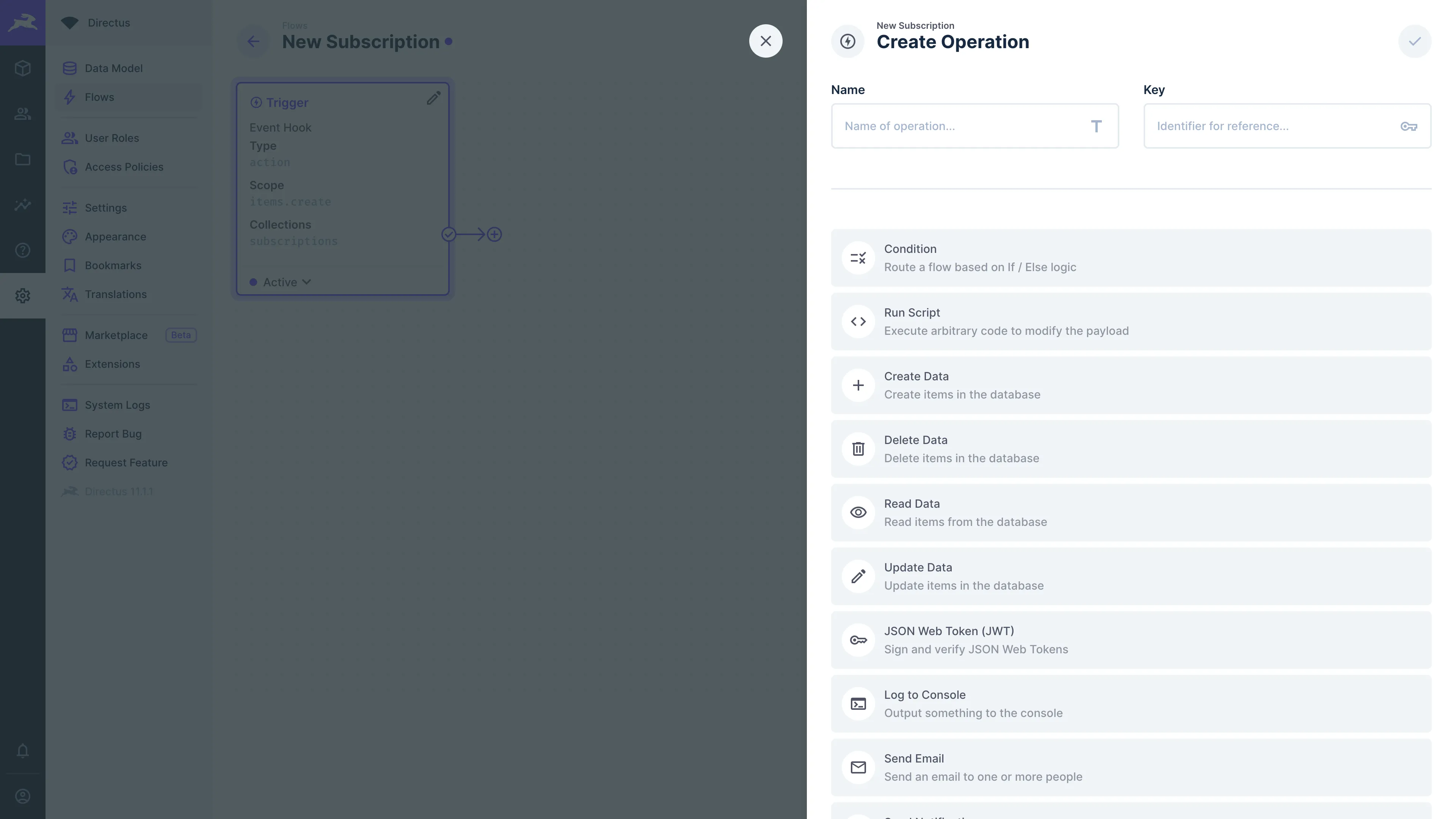

Operations are single steps in a Flow - the no-code automation tool part of Automate.
This extension type is loaded into the Directus process. They can use the provided services exported by the @directus/extensions-sdk package and can be written in JavaScript or TypeScript.
Operations have two entrypoints - one for the Data Studio, and one for the server process when the flow is run.
App Entrypoint
The app.js or app.ts file contains the configuration for the appearance and user-provided options of the operation.
Entrypoint Example
export default {
id: 'custom',
name: 'Custom',
icon: 'box',
description: 'This is my custom operation!',
overview: ({ text }) => [
{
label: 'Text',
text: text,
},
],
options: [
{
field: 'text',
name: 'Text',
type: 'string',
meta: {
width: 'full',
interface: 'input',
},
},
],
};
Options
| Option | Description |
|---|---|
id | A unique identifier for this extension. |
name | The displayed name for this panel in the Data Studio. |
icon | An icon name from the Google Material Icons set. Supports filled and outlined variants. |
description | A description of this panel shown in the Data Studio. Maximum 80 characters. |
overview | An overview that will be shown on the operation's tile. Can be either a function that receives the options of the operation and returns an array of objects containing label and text or a dedicated Vue component. |
options | The options of your operation. Can be either an options object or a dedicated Vue component. |
The extension id must not conflict with other extensions, so consider prefixing with author name.
API Entrypoint
The api.js or api.ts file contains the logic for the operation. It runs a handler function with the data passed from the App Entrypoint options.
Entrypoint Example
This example assumes there is an object with a name of text in the App Entrypoint options.
export default {
id: 'custom',
handler: (options) => {
console.log(options.text);
},
};
id in both the app and the api entrypoint must be the same.Handler Function
The handler function is called when the operation is executed. It must return a value to trigger the resolve anchor or throw with a value to trigger the reject anchor. The returned value will be added to the data chain.
The handler function receives options and context. options contains the operation's option values, while context has the following properties:
| Property | Description |
|---|---|
services | All API internal services. |
database | Knex instance that is connected to the current database. |
getSchema | Async function that reads the full available schema for use in services. |
env | Parsed environment variables. |
logger | Pino instance. |
data | Object containing the raw data returned by the previous operations. |
accountability | Information about the current user received by the trigger. |
Sandboxed Operations
TypeScript
You can import the SandboxOperationConfig type from directus:api to type the register function's context object:
/// <reference types="@directus/extensions/api.d.ts" />
import type { SandboxOperationConfig } from "directus:api";
const operation: SandboxOperationConfig = {
id: 'custom',
handler: (options) => {
},
};
export default operation;
The handler function receives the options object of the current flow.
Using Directus Internals
To access systems like permission checks and your collections, you can use internal Directus services, available through an API extension's context parameter.
Error Handling
To create errors in API extensions, you can utilize the @directus/errors package which is available to all extensions without installation.
import { createError } from '@directus/errors';
const ForbiddenError = createError('FORBIDDEN', "You don't have permissions to see this.", 403);
throw new ForbiddenError();
